TDA4863J - Vertical deflection booster

Name: TDA4863J
SKU: TDA4863J-378511

NXP

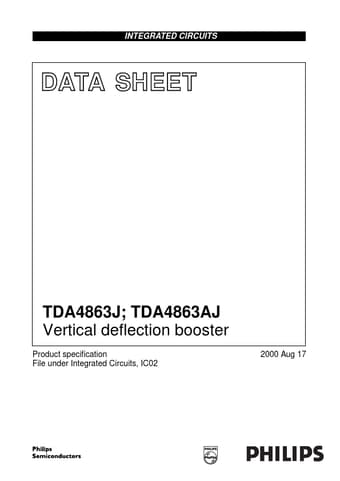

The TDA4863J by NXP is a Vertical deflection booster. Below is the official datasheet preview.

Datasheet Details

Part number	TDA4863J
Manufacturer	NXP
File Size	105.50 KB
Description	Vertical deflection booster
Datasheet	TDA4863J_PhilipsSemiconductors.pdf
Additional preview pages of the TDA4863J datasheet.

The TDA4863J and TDA4863AJ are deflection boosters for use in vertical deflection systems for frame frequencies up to 200 Hz.

Power amplifier with differential inputs.
Output current up to 3 A (p-p).
High vertical deflection frequency up to 200 Hz.
High linear sawtooth signal amplification.
Flyback generator:.
TDA4863J: separate adjustable flyback supply voltage up to 60 V.
TDA4863AJ: internally doubled supply voltage (two supply voltages only for DC-coupled outputs). TDA4863J; TDA4863AJ.
