TDA4866 - Full bridge current driven vertical deflection booster

Description

The TDA4866 is a power amplifier for use in 90 degree colour vertical deflection systems for frame frequencies of 50 to 160 Hz.

The circuit provides a high CMRR current driven differential input.

Features

  • Fully integrated, few external components.
  • No additional components in combination with the deflection controller TDA485x, TDA4841PS.
  • Pre-amplifier with differential high CMRR current mode inputs.
  • Low offsets.
  • High linear sawtooth signal amplification.
  • High efficient DC-coupled vertical output bridge circuit.
  • Powerless vertical shift.
  • High deflection frequency up to 160 Hz.
  • Power supply and flyback supply voltage i.

📥 Download Datasheet

Datasheet preview – TDA4866

Datasheet Details

Part number TDA4866
Manufacturer NXP Semiconductors
File Size 86.15 KB
Description Full bridge current driven vertical deflection booster
Datasheet download datasheet TDA4866 Datasheet
Additional preview pages of the TDA4866 datasheet.

📁 Similar Datasheet

  • TDA4862 - Power-Factor Controller (Siemens Semiconductor)
  • TDA4862 - Power-Factor Controller (PFC) IC (Infineon)
  • TDA4863 - Boost Controller (Infineon Technologies)
  • TDA4863-2 - Power Factor Controller IC for High Power Factor and Low THD (Infineon Technologies)
  • TDA4863-2G - Boost Controller (Infineon Technologies)
  • TDA4863G - Boost Controller (Infineon)
  • TDA4864AJ - Vertical deflection booster (Philips)
  • TDA4864J - Vertical deflection booster (Philips)
  • TDA4814 - Power Factor Controller (Siemens Semiconductor)
  • TDA4817 - Power Factor Controller (Siemens Semiconductor)
Other Datasheets by NXP
  • TDA4860 - Vertical deflection power amplifier
  • TDA4861 - Vertical deflection power amplifier
  • TDA4863AJ - Vertical deflection booster
  • TDA4863J - Vertical deflection booster
  • TDA4865AJ - Vertical Deflection Booster
  • TDA4865J - Vertical Deflection Booster
  • TDA4867J - Full bridge current driven vertical deflection booster
  • TDA4800 - Vertical deflection

Full PDF Text Transcription

Click to expand full text

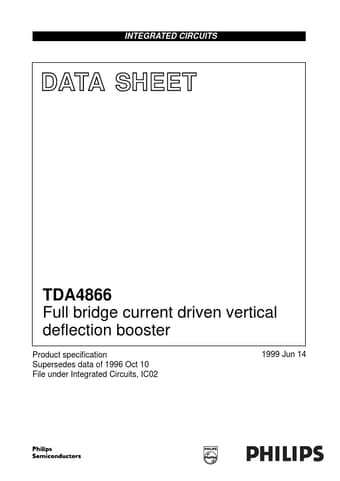

INTEGRATED CIRCUITS DATA SHEET TDA4866 Full bridge current driven vertical deflection booster Product specification Supersedes data of 1996 Oct 10 File under Integrated Circuits, IC02 1999 Jun 14 Philips Semiconductors Product specification Full bridge current driven vertical deflection booster FEATURES • Fully integrated, few external components • No additional components in combination with the deflection controller TDA485x, TDA4841PS • Pre-amplifier with differential high CMRR current mode inputs • Low offsets • High linear sawtooth signal amplification • High efficient DC-coupled vertical output bridge circuit • Powerless vertical shift • High deflection frequency up to 160 Hz • Power supply and flyback supply voltage independent adjustable to optimize power consumption and flyback t
