TDA4860 - Vertical deflection power amplifier

NXP

The TDA4860 by NXP is a Vertical deflection power amplifier. Below is the official datasheet preview.

📥 Download Datasheet

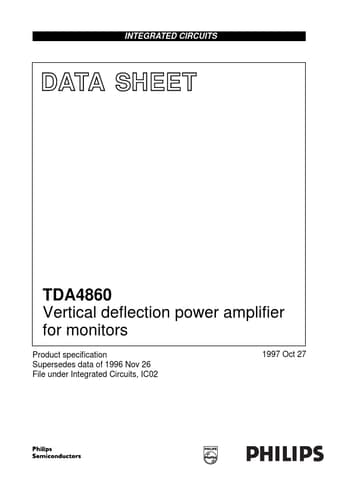

TDA4860 Vertical deflection power amplifier by NXP - Datasheet Preview — Official preview page of the **TDA4860** Vertical deflection power amplifier datasheet (NXP).

Datasheet Details

Part number	TDA4860
Manufacturer	NXP
File Size	93.34 KB
Description	Vertical deflection power amplifier
Datasheet	TDA4860_PhilipsSemiconductors.pdf
Additional preview pages of the TDA4860 datasheet.

TDA4860 Product details

Description

TDA4860 The TDA4860 is a vertical power amplifier for differential input signals suitable for colour monitor/TV systems with deflection frequencies up to 160 Hz.MAX.30 60 60 10 ±1 +75 V V V UNIT mA mA A °C VP1 0.5 V ORDERING INFORMATION TYPE NUMBER TDA4860 PACKAGE NAME SIL9MPF DESCRIPTION plastic single in-line medium power package with ﬁn; 9 leads VERSION SOT110-1 1997 Oct 27 2 Philips Semiconductors Product speciﬁcation Vertical deﬂection power ampliﬁer for mo

Features

Vertical pre-amplifier with differential inputs.
Powerless vertical shift.
Flyback voltage generation suitable for two operating modes (doubling the supply voltage or external supply for the short flyback time, this achieves a minimum of power dissipation).
Vertical output stage with thermal and SOAR protection.
High deflection frequency up to 160 Hz.
High linear sawtooth signal amplification.
Possibility of guarding the deflection.
