LPC1104 (LPC1102 / LPC1104) 32-bit ARM Cortex-M0 microcontroller

LPC1104 Description

LPC1102/1104 32-bit ARM Cortex-M0 microcontroller; 32 kB flash and 8 kB SRAM Rev.7 * 26 September 2013 Product data sheet 1.General desc.
The LPC1102/1104 are an ARM Cortex-M0 based, low-cost 32-bit MCU, designed for 8/16-bit microcontroller applications, offering performance, low power,.

LPC1104 Features

* System:
* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).
* Serial Wire Debug.
* System tick timer.
* Memory:
* 32 kB on-chip flash programming memory.
* 8 kB SRAM.
* In-Appli

LPC1104 Applications

* offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC1102/1104 operate at CPU frequencies of up to 50 MHz. The peripheral complement of the LPC1102/1104 includes 32 kB of flash memory, 8 kB

📥 Download Datasheet

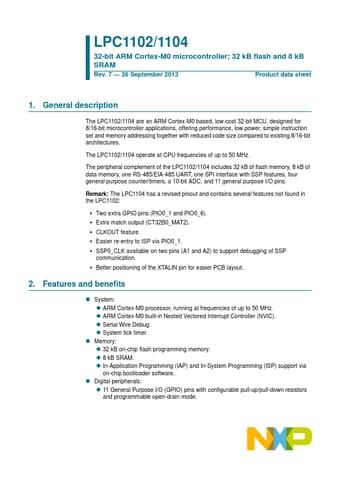

Preview of LPC1104 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LPC1104
Manufacturer
NXP ↗
File Size
379.93 KB
Datasheet
LPC1104_NXP.pdf
Description
(LPC1102 / LPC1104) 32-bit ARM Cortex-M0 microcontroller
