LPC1111, LPC1110, 32-bit ARM Cortex-M0 microcontroller

LPC1110/11/12/13/14/15 32-bit ARM Cortex-M0 microcontroller; up to 64 kB flash and 8 kB SRAM Rev.9.2 * 26 March 2014 Product data sheet 1.
The LPC1110/11/12/13/14/15 are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering perfor.

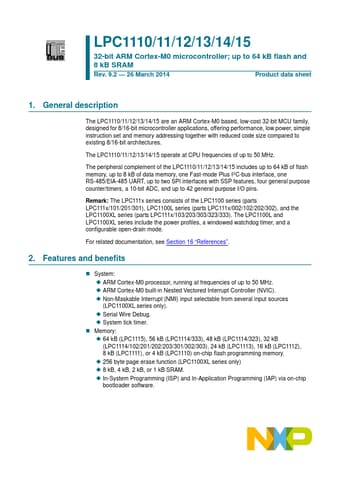

datasheet Preview Page 1 from Datasheet4u.com

LPC1110_NXP.pdf

LPC1111 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPC1111, LPC1110. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPC1111, LPC1110

Manufacturer:

NXP ↗

File Size:

1.21 MB

Description:

32-bit ARM Cortex-M0 microcontroller

Note:

This datasheet PDF includes multiple part numbers: LPC1111, LPC1110.
Please refer to the document for exact specifications by model.

Features

* System:
* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).
* Non-Maskable Interrupt (NMI) input selectable from several input sources (LPC1100XL series only).
* Serial Wire Debug.
* System

Applications

* offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC1110/11/12/13/14/15 operate at CPU frequencies of up to 50 MHz. The peripheral complement of the LPC1110/11/12/13/14/15 includes up to 64
