LPC1102LVUK, LPC11XXLV 32-bit ARM Cortex-M0 MCU

LPC1102LVUK Description

LPC111xLV/LPC11xxLVUK 32-bit ARM Cortex-M0 MCU; up to 32 kB flash, 8 kB SRAM; 8-bit ADC Rev.2 * 10 October 2012 Product data sheet 1.Genera.
The LPC111xLV/LPC11xxLVUK is an ARM Cortex-M0-based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performa.

LPC1102LVUK Features

* System:
* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).
* Serial Wire Debug.
* System tick timer.
* Memory:
* Up to 32 kB on-chip flash programming memory with a 256 byte page erase

LPC1102LVUK Applications

* offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC111xLV/LPC11xxLVUK operate at CPU frequencies of up to 50 MHz. The peripherals of the LPC111xLV/LPC11xxLVUK include up to 32 kB of flash

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LPC1102LVUK, LPC11XXLV. Please refer to the document for exact specifications by model.

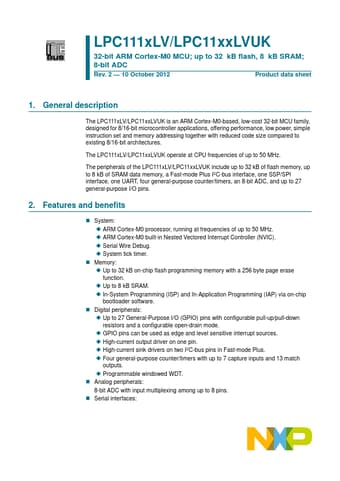

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LPC1102LVUK, LPC11XXLV
Manufacturer
NXP ↗
File Size
1.49 MB
Datasheet
LPC11XXLV_NXP.pdf
Description
32-bit ARM Cortex-M0 MCU
Note
This datasheet PDF includes multiple part numbers: LPC1102LVUK, LPC11XXLV.
Please refer to the document for exact specifications by model.
