IP4369CX4 - ESD protection

Name: IP4369CX4
SKU: IP4369CX4-971608

NXP

📥 Download Datasheet

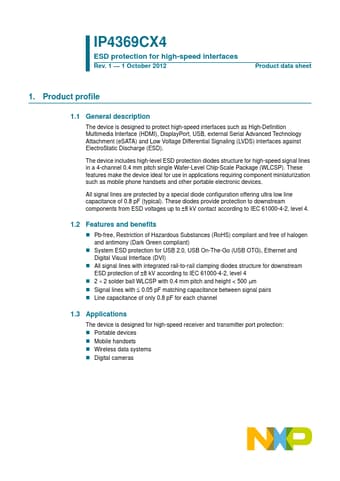

IP4369CX4 Datasheet Preview — Preview of IP4369CX4 PDF

Datasheet Details

Part number	IP4369CX4
Manufacturer	NXP
File Size	415.89 KB
Description	ESD protection
Datasheet	IP4369CX4-NXP.pdf

IP4369CX4 Product details

Description

The device is designed to protect high-speed interfaces such as High-Definition Multimedia Interface (HDMI), DisplayPort, USB, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD).

Features

Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant).
System ESD protection for USB 2.0, USB On-The-Go (USB OTG), Ethernet and Digital Visual Interface (DVI).
All signal lines with integrated rail-to-rail clamping diodes structure for downstream ESD protection of 8 kV according to IEC 61000-4-2, level 4.
2  2 solder ball WLCSP with 0.4 mm pitch and height < 500 m.
Signal lines with  0.05 pF matching ca.
