IP4302CX2 - Low profile bidirectional low capacitance ESD protection diode

NXP Semiconductors

📥 Download Datasheet

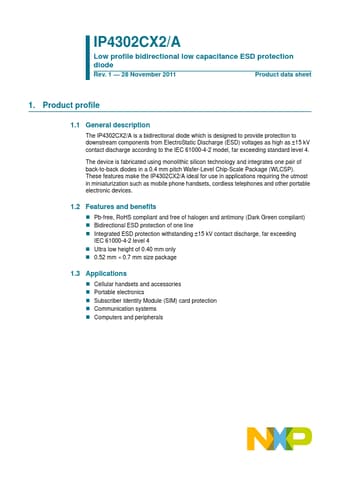

IP4302CX2 Datasheet Preview — Preview of IP4302CX2 PDF

Datasheet Details

Part number	IP4302CX2
Manufacturer	NXP Semiconductors
File Size	395.24 KB
Description	Low profile bidirectional low capacitance ESD protection diode
Datasheet	IP4302CX2_NXPSemiconductors.pdf

IP4302CX2 Product details

Description

The IP4302CX2/A is a bidirectional diode which is designed to provide protection to downstream components from ElectroStatic Discharge (ESD) voltages as high as 15 kV contact discharge according to the IEC 61000-4-2 model, far exceeding standard level 4.

Features

Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant).
Bidirectional ESD protection of one line.
Integrated ESD protection withstanding 15 kV contact discharge, far exceeding IEC 61000-4-2 level 4.
Ultra low height of 0.40 mm only.
0.52 mm  0.7 mm size package 1.3.
