IP4220CZ6 - Dual USB 2.0 integrated ESD protection

Name: IP4220CZ6
SKU: IP4220CZ6-573534

NXP

📥 Download Datasheet

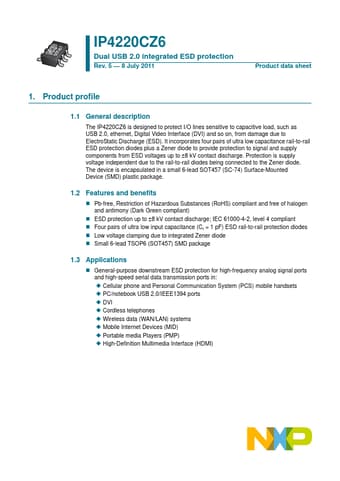

IP4220CZ6 Datasheet Preview — Preview of IP4220CZ6 PDF

Datasheet Details

Part number	IP4220CZ6
Manufacturer	NXP
File Size	120.36 KB
Description	Dual USB 2.0 integrated ESD protection
Datasheet	IP4220CZ6_PhilipsSemiconductors.pdf

IP4220CZ6 Product details

Description

The IP4220CZ6 is designed to protect I/O lines sensitive to capacitive load, such as USB 2.0, ethernet, Digital Video Interface (DVI) and so on, from damage due to ElectroStatic Discharge (ESD).

Features

Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant).
ESD protection up to 8 kV contact discharge; IEC 61000-4-2, level 4 compliant.
Four pairs of ultra low input capacitance (CI = 1 pF) ESD rail-to-rail protection diodes.
Low voltage clamping due to integrated Zener diode.
Small 6-lead TSOP6 (SOT457) SMD package 1.3.
