IP4234CZ6 - Single USB 2.0 ESD protection

Name: IP4234CZ6
SKU: IP4234CZ6-968590

NXP

📥 Download Datasheet

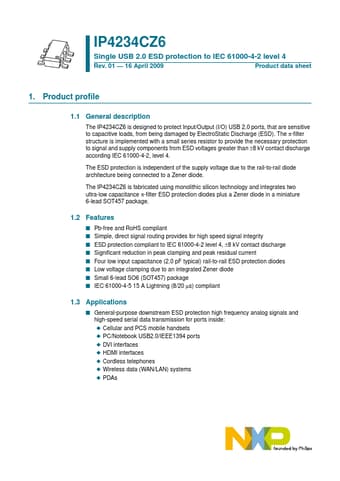

IP4234CZ6 Datasheet Preview — Preview of IP4234CZ6 PDF

Datasheet Details

Part number	IP4234CZ6
Manufacturer	NXP
File Size	51.04 KB
Description	Single USB 2.0 ESD protection
Datasheet	IP4234CZ6-NXP.pdf

IP4234CZ6 Product details

Description

The IP4234CZ6 is designed to protect Input/Output (I/O) USB 2.0 ports, that are sensitive to capacitive loads, from being damaged by ElectroStatic Discharge (ESD).

Features

I Pb-free and RoHS compliant I Simple, direct signal routing provides for high speed signal integrity I ESD protection compliant to IEC 61000-4-2 level 4, ±8 kV contact discharge I Signiﬁcant reduction in peak clamping and peak residual current I Four low input capacitance (2.0 pF typical) rail-to-rail ESD protection diodes I Low voltage clamping due to an integrated Zener diode I Small 6-lead SO6 (SOT457) package I IEC 61000-4-5 15 A Lightning (8/20 µs) compliant 1.3.
