IP4264CZ8-10-TTL - (IP4264CZ8-10/-20/-40-TTL) Integrated (U)SIM card passive filter array

Download the IP4264CZ8-10-TTL datasheet PDF. This datasheet also covers the IP4264CZ8-10 variant, as both devices belong to the same (ip4264cz8-10/-20/-40-ttl) integrated (u)sim card passive filter array family and are provided as variant models within a single manufacturer datasheet.

Description

The IP4264CZ8-10-TTL, IP4264CZ8-20-TTL and IP4264CZ8-40-TTL are 3-channel RC low-pass filter arrays.

They are designed to provide filtering of undesired RF signals in the 800 MHz-to-3000 MHz frequency band.

Features

  • Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant).
  • 3-channel SIM card interface integrated RC-filter array and SIM voltage ESD protection.
  • 2 USIM (USB 1.1) compliant ESD protection diodes with 20 pF channel capacitance.
  • Integrated 100 /100 /47  series channel resistors.
  • Total channel capacitance of 10 pF (IP4264CZ8-10-TTL), 20 pF (IP4264CZ8-20-TTL) or 40 pF (IP4264CZ8-40-TTL).
  • Downstream ESD pro.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IP4264CZ8-10-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IP4220CZ6 Dual USB 2.0 Integrated ESD protection to IEC 61000-4-2 level 4 Philips
IP4220CZ6 Dual USB 2.0 integrated ESD protection nexperia
IP4233CZ6 Ultra low capacitance ESD protection nexperia
IP4234CZ6 Single USB 2.0 ESD protection nexperia
IP4238CZ10 Surge protection NXP Semiconductors

Other Datasheets by NXP Semiconductors

Part Number Description
IP4264CZ8-20 (IP4264CZ8-20 / IP4264CZ8-40) Integrated USIM/SIM card passive filter arrays
IP4264CZ8-20-TTL (IP4264CZ8-10/-20/-40-TTL) Integrated (U)SIM card passive filter array
IP4264CZ8-40 (IP4264CZ8-20 / IP4264CZ8-40) Integrated USIM/SIM card passive filter arrays
IP4264CZ8-40-TTL (IP4264CZ8-10/-20/-40-TTL) Integrated (U)SIM card passive filter array
IP4220CZ6 Dual USB 2.0 integrated ESD protection

Full PDF Text Transcription

Click to expand full text

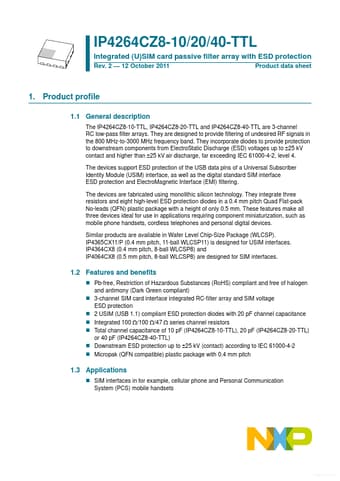

IP4264CZ8-10/20/40-TTL Integrated (U)SIM card passive filter array with ESD protection Rev. 2 — 12 October 2011 Product data sheet 1. Product profile 1.1 General description The IP4264CZ8-10-TTL, IP4264CZ8-20-TTL and IP4264CZ8-40-TTL are 3-channel RC low-pass filter arrays. They are designed to provide filtering of undesired RF signals in the 800 MHz-to-3000 MHz frequency band. They incorporate diodes to provide protection to downstream components from ElectroStatic Discharge (ESD) voltages up to 25 kV contact and higher than 25 kV air discharge, far exceeding IEC 61000-4-2, level 4.
