IP4264CZ8-40, IP4264CZ8-20 - (IP4264CZ8-20 / IP4264CZ8-40) Integrated USIM/SIM card passive filter arrays

Name: IP4264CZ8-40
SKU: IP4264CZ8-40-774859

NXP

📥 Download Datasheet

IP4264CZ8-40 Datasheet Preview — This datasheet PDF includes multiple part numbers: IP4264CZ8-40, IP4264CZ8-20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IP4264CZ8-40, IP4264CZ8-20
Manufacturer	NXP
File Size	302.51 KB
Description	(IP4264CZ8-20 / IP4264CZ8-40) Integrated USIM/SIM card passive filter arrays
Datasheet	IP4264CZ8-20-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: IP4264CZ8-40, IP4264CZ8-20. Please refer to the document for exact specifications by model.

IP4264CZ8-40 Product details

Description

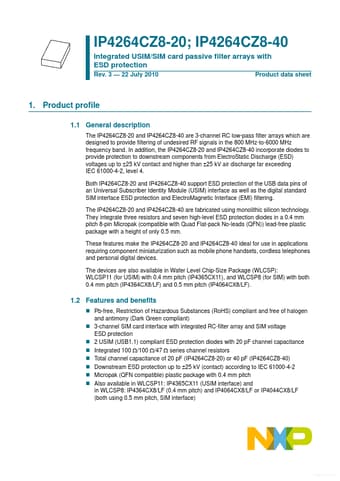

The IP4264CZ8-20 and IP4264CZ8-40 are 3-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals in the 800 MHz-to-6000 MHz frequency band.

Features

Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant).
3-channel SIM card interface with integrated RC-filter array and SIM voltage ESD protection.
2 USIM (USB1.1) compliant ESD protection diodes with 20 pF channel capacitance.
Integrated 100 Ω/100 Ω/47 Ω series channel resistors.
Total channel capacitance of 20 pF (IP4264CZ8-20) or 40 pF (IP4264CZ8-40).
Downstream ESD protectio.
