BTA204-600D - 3Q Hi-Com Triac

NXP

📥 Download Datasheet

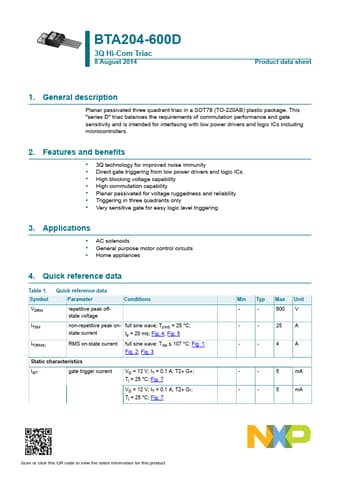

BTA204-600D Datasheet Preview — Preview of BTA204-600D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA204-600D
Manufacturer	NXP
File Size	186.20 KB
Description	3Q Hi-Com Triac
Datasheet	BTA204-600D_PhilipsSemiconductors.pdf

BTA204-600D Product details

Description

Planar passivated three quadrant triac in a SOT78 (TO-220AB) plastic package.

Features

3Q technology for improved noise immunity.
Direct gate triggering from low power drivers and logic ICs.
High blocking voltage capability.
High commutation capability.
Planar passivated for voltage ruggedness and reliability.
Triggering in three quadrants only.
Very sensitive gate for easy logic level triggering 3.
