BTA204-600C - 3Q Hi-Com Triac

NXP

The BTA204-600C by NXP is a 3Q Hi-Com Triac. Below is the official datasheet preview.

📥 Download Datasheet

BTA204-600C 3Q Hi-Com Triac by NXP - Datasheet Preview — Official preview page of the **BTA204-600C** 3Q Hi-Com Triac datasheet (NXP).

Datasheet Details

Part number	BTA204-600C
Manufacturer	NXP
File Size	186.06 KB
Description	3Q Hi-Com Triac
Datasheet	BTA204-600C_PhilipsSemiconductors.pdf

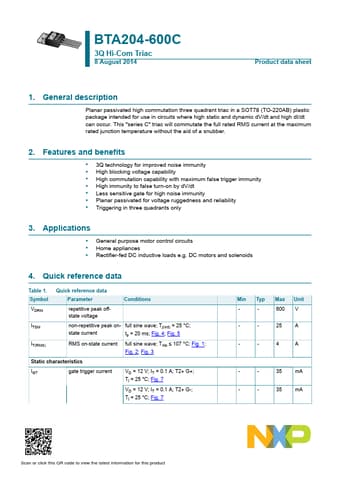

Additional preview pages of the BTA204-600C datasheet.

BTA204-600C Product details

Description

Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur.

Features

3Q technology for improved noise immunity.
High blocking voltage capability.
High commutation capability with maximum false trigger immunity.
High immunity to false turn-on by dV/dt.
Less sensitive gate for high noise immunity.
Planar passivated for voltage ruggedness and reliability.
Triggering in three quadrants only 3.
