BTA204-600B - 3Q Hi-Com Triac

Name: BTA204-600B
SKU: BTA204-600B-363894

NXP

📥 Download Datasheet

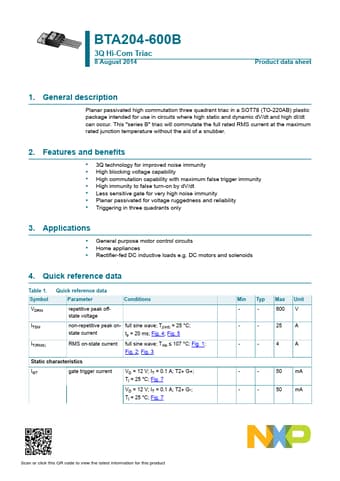

BTA204-600B Datasheet Preview — Preview of BTA204-600B PDF

Datasheet Details

Part number	BTA204-600B
Manufacturer	NXP
File Size	186.01 KB
Description	3Q Hi-Com Triac
Datasheet	BTA204-600B_PhilipsSemiconductors.pdf

BTA204-600B Product details

Description

Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur.

Features

3Q technology for improved noise immunity.
High blocking voltage capability.
High commutation capability with maximum false trigger immunity.
High immunity to false turn-on by dV/dt.
Less sensitive gate for very high noise immunity.
Planar passivated for voltage ruggedness and reliability.
Triggering in three quadrants only 3.
