BGY685A Datasheet - NXP

BGY685A_PhilipsSemiconductors.pdf

BGY685A Datasheet Preview — Preview of BGY685A PDF

Datasheet Details

Part number:

BGY685A

Manufacturer:

NXP ↗

File Size:

64.52 KB

Description:

Catv amplifier.

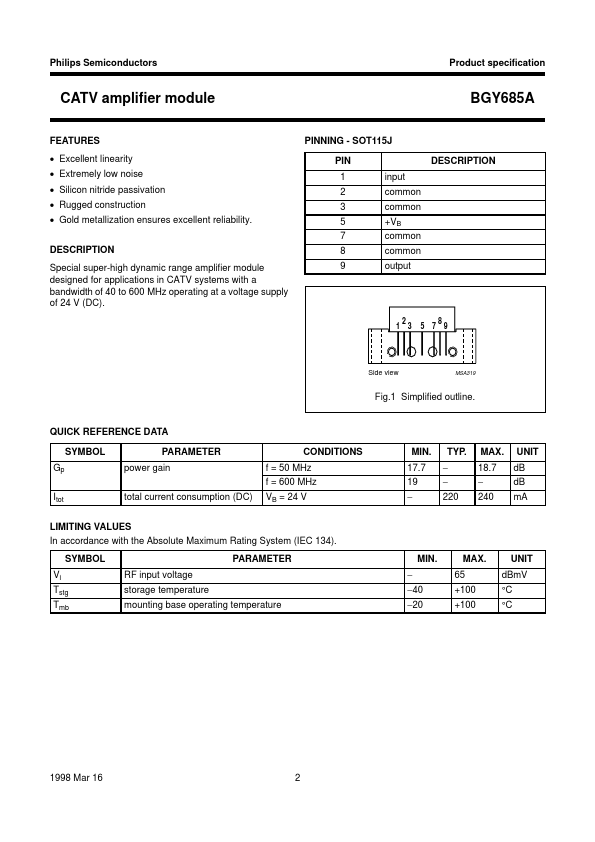

BGY685A, CATV amplifier

Special super-high dynamic range amplifier module designed for applications in CATV systems with a bandwidth of 40 to 600 MHz operating at a voltage supply of 24 V (DC).

PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output BGY685A DESCRIPTION handbook, halfpage 1 2
