BGY685 - CATV amplifier

BGY685 Description

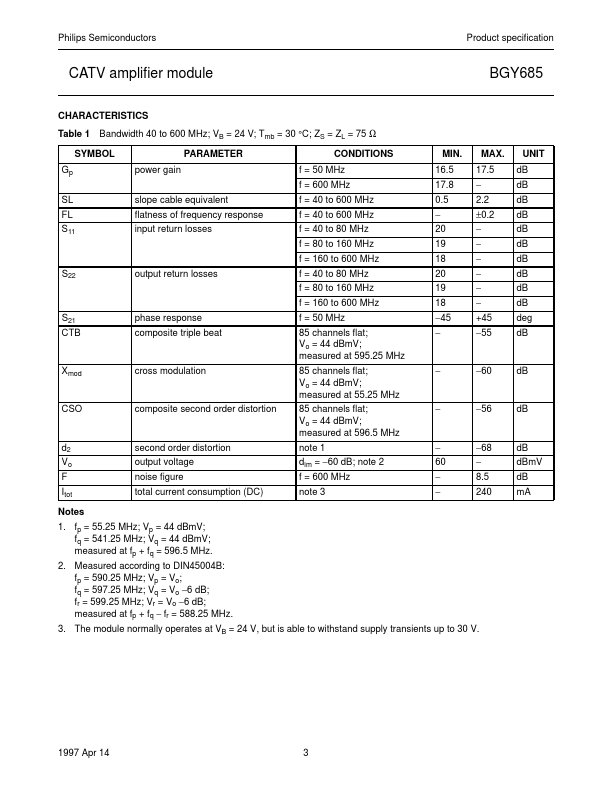

DISCRETE SEMICONDUCTORS DATA SHEET BGY685 CATV amplifier module Product speciļ¬cation Supersedes data of February 1995 File under Discrete Semiconduc.
Hybrid high dynamic range amplifier module designed for applications in CATV systems operating over a frequency range of 40 to 600 MHz operating with.

BGY685 Features

* Excellent linearity
* Extremely low noise
* Silicon nitride passivation
* Rugged construction

BGY685 Applications

* in CATV systems operating over a frequency range of 40 to 600 MHz operating with a voltage supply of 24 V (DC). QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 600 MHz VB = 24 V MIN. 16.5 17.8
* 240 MAX. 17.5 PINNING
