BGY681 Datasheet - NXP

BGY681_PhilipsSemiconductors.pdf

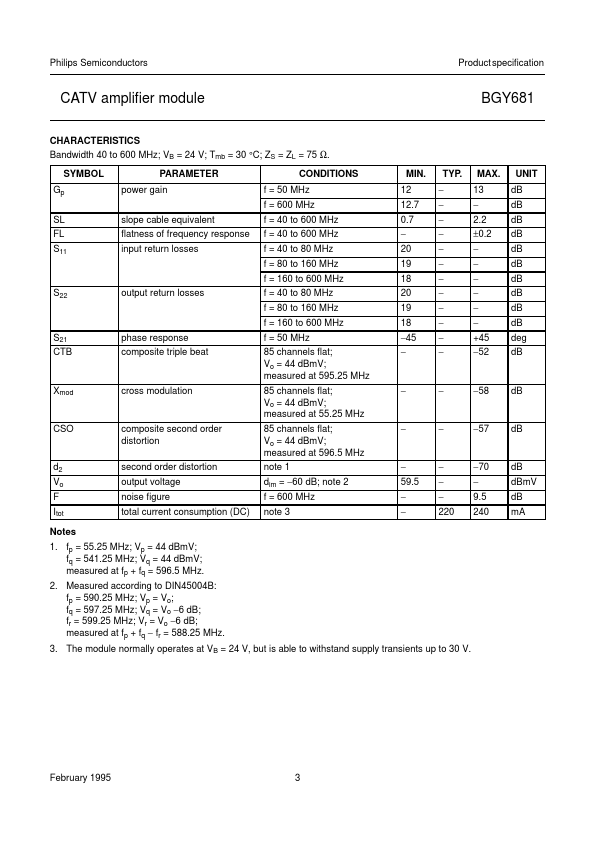

BGY681 Datasheet Preview — Preview of BGY681 PDF

Datasheet Details

Part number:

BGY681

Manufacturer:

NXP ↗

File Size:

19.92 KB

Description:

Catv amplifier.

BGY681, CATV amplifier

Hybrid high dynamic range amplifier module designed for CATV systems operating over a frequency range of 40 to 600 MHz operating with a voltage supply of 24 V (DC).

PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output Side view BGY681 DESCRIPTION fpage 1 2 3 8 5 7 9
