74ABT834 - Octal inverting transceiver

NXP

The 74ABT834 by NXP is a Octal inverting transceiver. Below is the official datasheet preview.

📥 Download Datasheet

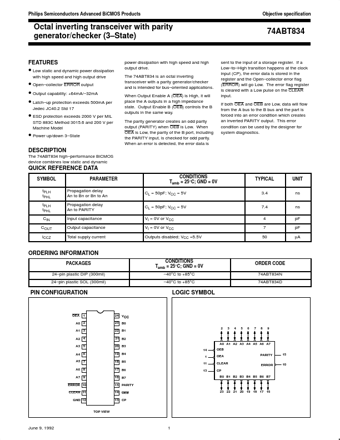

74ABT834 Octal inverting transceiver by NXP - Datasheet Preview — Official preview page of the **74ABT834** Octal inverting transceiver datasheet (NXP).

Datasheet Details

Part number	74ABT834
Manufacturer	NXP
File Size	49.13 KB
Description	Octal inverting transceiver
Datasheet	74ABT834_PhilipsSemiconductors.pdf
Additional preview pages of the 74ABT834 datasheet.

74ABT834 Product details

Description

The 74ABT834 high performance BiCMOS device combines low static and dynamic QUICK REFERENCE DATA SYMBOL PARAMETER tPLH tPHL tPLH tPHL CIN COUT ICCZ Propagation delay An to Bn or Bn to An Propagation delay An to PARITY Input capacitance Output capacitance Total supply current power dissipation with high speed and high output drive.The 74ABT834 is an octal inverting transceiver with a parity generator/checker and is intended for bus oriented applications.

Features

Low static and dynamic power dissipation with high speed and high output drive.
Open.
collector ERROR output.
Output capability: +64mA/.
32mA.
Latch.
up protection exceeds 500mA per Jedec JC40.2 Std 17.
ESD protection exceeds 2000 V per MIL STD 883C Method 3015.6 and 200 V per Machine Model.
Power up/down 3.
State.
