PCA9527 - 3-channel bidirectional bus extender

NXP Semiconductors

The PCA9527 by NXP Semiconductors is a 3-channel bidirectional bus extender. Below is the official datasheet preview.

📥 Download Datasheet

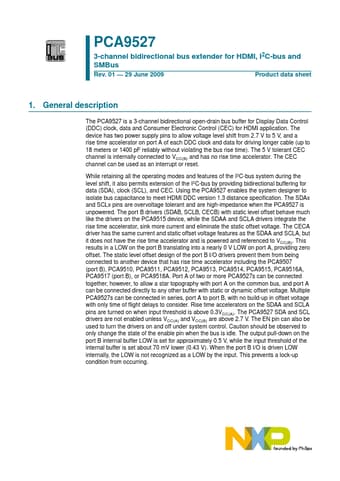

PCA9527 3-channel bidirectional bus extender by NXP Semiconductors - Datasheet Preview — Official preview page of the **PCA9527** 3-channel bidirectional bus extender datasheet (NXP Semiconductors).

Datasheet Details

Part number	PCA9527
Manufacturer	NXP Semiconductors
File Size	123.57 KB
Description	3-channel bidirectional bus extender
Datasheet	PCA9527-NXPSemiconductors.pdf
Additional preview pages of the PCA9527 datasheet.

PCA9527 Product details

Description

The PCA9527 is a 3-channel bidirectional open-drain bus buffer for Display Data Control (DDC) clock, data and Consumer Electronic Control (CEC) for HDMI application.

Features

of the I2C-bus system during the level shift, it also permits extension of the I2C-bus by providing bidirectional buffering for data (SDA), clock (SCL), and CEC. Using the PCA9527 enables the system designer to isolate bus capacitance to meet HDMI DDC version 1.3 distance speciﬁcation. The SDAx and SCLx pins are overvoltage tolerant and are high-impedance when the PCA9527 is unpowered. The port B drivers (SDAB, SCLB, CECB) with static level offset behave much like the drivers on the PCA9515 devi.
