PCA9525 - Simple 2-wire bus buffer

NXP Semiconductors

The PCA9525 by NXP Semiconductors is a Simple 2-wire bus buffer. Below is the official datasheet preview.

📥 Download Datasheet

PCA9525 Simple 2-wire bus buffer by NXP Semiconductors - Datasheet Preview — Official preview page of the **PCA9525** Simple 2-wire bus buffer datasheet (NXP Semiconductors).

Datasheet Details

Part number	PCA9525
Manufacturer	NXP Semiconductors
File Size	250.99 KB
Description	Simple 2-wire bus buffer
Datasheet	PCA9525_NXPSemiconductors.pdf

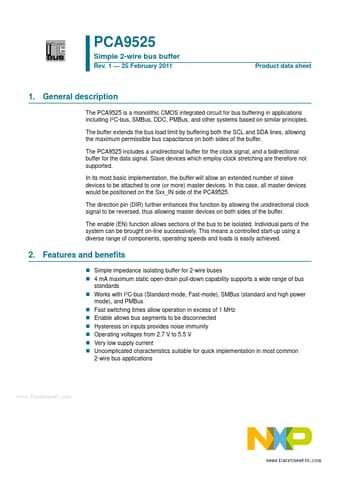

Additional preview pages of the PCA9525 datasheet.

PCA9525 Product details

Description

The PCA9525 is a monolithic CMOS integrated circuit for bus buffering in applications including I2C-bus, SMBus, DDC, PMBus, and other systems based on similar principles.

Features

Simple impedance isolating buffer for 2-wire buses.
4 mA maximum static open-drain pull-down capability supports a wide range of bus standards.
Works with I2C-bus (Standard-mode, Fast-mode), SMBus (standard and high power mode), and PMBus.
Fast switching times allow operation in excess of 1 MHz.
Enable allows bus segments to be disconnected.
Hysteresis on inputs provides noise immunity.
Operating voltages from 2.7 V to 5.5 V.
