PCA9522 - Fast dual bidirectional bus buffer

NXP Semiconductors

The PCA9522 by NXP Semiconductors is a Fast dual bidirectional bus buffer. Below is the official datasheet preview.

📥 Download Datasheet

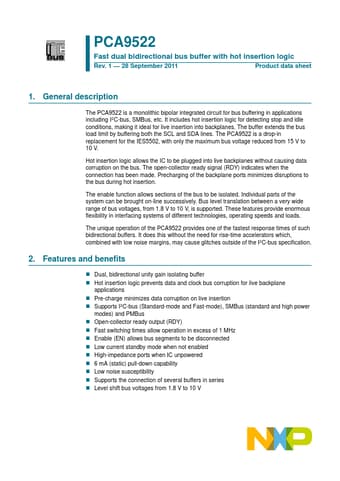

PCA9522 Fast dual bidirectional bus buffer by NXP Semiconductors - Datasheet Preview — Official preview page of the PCA9522 Fast dual bidirectional bus buffer datasheet (NXP Semiconductors).

Datasheet Details

Part number	PCA9522
Manufacturer	NXP Semiconductors
File Size	157.98 KB
Description	Fast dual bidirectional bus buffer
Datasheet	PCA9522-NXPSemiconductors.pdf
Additional preview pages of the PCA9522 datasheet.

PCA9522 Product details

Description

The PCA9522 is a monolithic bipolar integrated circuit for bus buffering in applications including I2C-bus, SMBus, etc.

Features

Dual, bidirectional unity gain isolating buffer.
Hot insertion logic prevents data and clock bus corruption for live backplane.
