NTE5326W - Silicon Bridge Rectifier

Product Overview

NTE

📥 Download Datasheet

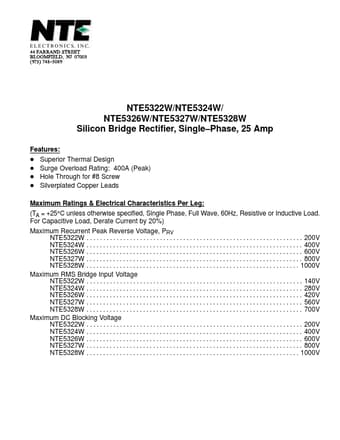

NTE5326W Silicon Bridge Rectifier by NTE - Datasheet Preview — Datasheet preview – NTE5326W

Datasheet Details

Part number	NTE5326W
Manufacturer	NTE
File Size	17.71 KB
Description	Silicon Bridge Rectifier
Datasheet	NTE5326W Datasheet
Additional preview pages of the NTE5326W datasheet.

Product details

Features

D Superior Thermal Design D Surge Overload Rating: 400A (Peak) D Hole Through for #8 Screw D Silverplated Copper Leads Maximum Ratings & Electrical Characteristics Per Leg: (TA = +25°C unless otherwise specified, Single Phase, Full Wave, 60Hz, Resistive or Inductive Load. For Capacitive Load, Derate Current by 20%) Maximum Recurrent Peak Reverse Voltage, PRV NTE5322W.
200V NTE5324.
