NTE5322 - Silicon Bridge Rectifier

Product Overview

NTE

📥 Download Datasheet

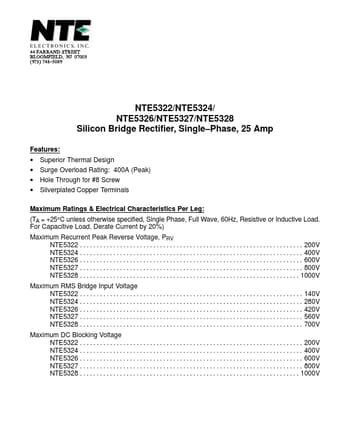

NTE5322 Silicon Bridge Rectifier by NTE - Datasheet Preview — Datasheet preview – NTE5322

Datasheet Details

Part number	NTE5322
Manufacturer	NTE
File Size	17.22 KB
Description	Silicon Bridge Rectifier
Datasheet	NTE5322 Datasheet
Additional preview pages of the NTE5322 datasheet.

Product details

Features

Superior Thermal Design Surge Overload Rating: 400A (Peak) Hole Through for #8 Screw Silverplated Copper Terminals Maximum Ratings & Electrical Characteristics Per Leg: (TA = +25°C unless otherwise specified, Single Phase, Full Wave, 60Hz, Resistive or Inductive Load. For Capacitive Load, Derate Current by 20%) Maximum Recurrent Peak Reverse Voltage, PRV NTE5322.
