NTE5320 - Single Phase Bridge Rectifier

Product Overview

NTE

📥 Download Datasheet

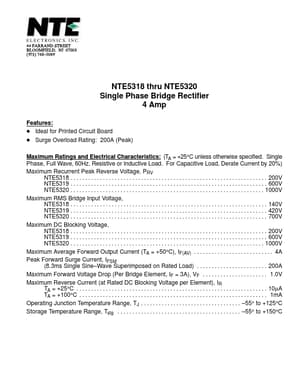

NTE5320 Single Phase Bridge Rectifier by NTE - Datasheet Preview — Datasheet preview – NTE5320

Datasheet Details

Part number	NTE5320
Manufacturer	NTE
File Size	16.64 KB
Description	Single Phase Bridge Rectifier
Datasheet	NTE5320 Datasheet
Additional preview pages of the NTE5320 datasheet.

Product details

Features

D Ideal for Printed Circuit Board D Surge Overload Rating: 200A (Peak) Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified. Single Phase, Full Wave, 60Hz, Resistive or Inductive Load. For Capacitive Load, Derate Current by 20%) Maximum Recurrent Peak Reverse Voltage, PRV NTE5318.
. . 200V NTE5319.
