NTE955SM

The NTE955SM is Integrated Circuit Timing Circuit designed by NTE Electronics.

Product Overview

NTE Electronics

Part number	NTE955SM
Manufacturer	NTE Electronics
File Size	28.43 KB
Description	Integrated Circuit Timing Circuit
Datasheet	NTE955SM_NTEElectronics.pdf

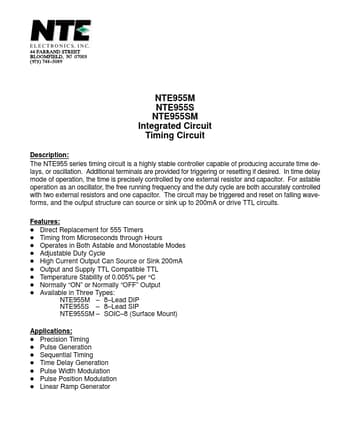

Additional preview pages of the NTE955SM datasheet.

The NTE955 series timing circuit is a highly stable controller capable of producing accurate time delays, or oscillation.

D Direct Replacement for 555 Timers D Timing from Microseconds through Hours D Operates in Both Astable and Monostable Modes D Adjustable Duty Cycle D High Current Output Can Source or Sink 200mA D Output and Supply TTL Compatible TTL D Temperature Stability of 0.005% per °C D Normally “ON” or Normally “OFF” Output D Available in Three Types: NTE955M.
8.
Lead DIP NTE955S.
8.
Lead SIP NTE955SM.
SOIC.
8 (Surface Mount).
