NTE955M - Integrated Circuit Timing Circuit

Description

The NTE955 series timing circuit is a highly stable controller capable of producing accurate time delays, or oscillation.

Additional terminals are provided for triggering or resetting if desired.

Features

  • D Direct Replacement for 555 Timers D Timing from Microseconds through Hours D Operates in Both Astable and Monostable Modes D Adjustable Duty Cycle D High Current Output Can Source or Sink 200mA D Output and Supply TTL Compatible TTL D Temperature Stability of 0.005% per °C D Normally “ON” or Normally “OFF” Output D Available in Three Types: NTE955M.
  • 8.
  • Lead DIP NTE955S.
  • 8.
  • Lead SIP NTE955SM.
  • SOIC.
  • 8 (Surface Mount).

📥 Download Datasheet

Datasheet Details

Part number NTE955M
Manufacturer NTE Electronics (defunct)
File Size 28.43 KB
Description Integrated Circuit Timing Circuit
Datasheet download datasheet NTE955M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE954 4-Terminal Negative Adjustable Voltage Regulator NTE
NTE91 Silicon Complementary Transistors NTE
NTE917 Integrated Circuit NTE
NTE93 Silicon Complementary Transistors NTE
NTE-247 Silicon Complementary Transistors Darlington Power Amplifier NTE

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE955MC Integrated Circuit CMOS Timing Circuit
NTE955 Integrated Circuit Timing Circuit
NTE955S Integrated Circuit Timing Circuit
NTE955SM Integrated Circuit Timing Circuit
NTE950 Positive 3 Terminal Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

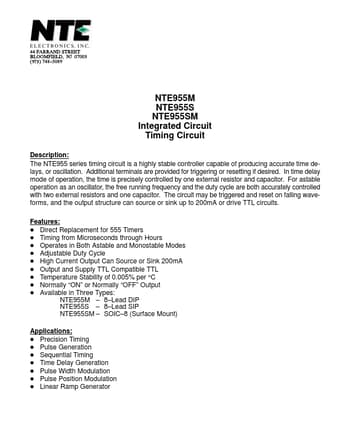

NTE955M NTE955S NTE955SM Integrated Circuit Timing Circuit Description: The NTE955 series timing circuit is a highly stable controller capable of producing accurate time delays, or oscillation. Additional terminals are provided for triggering or resetting if desired. In time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For astable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA or drive TTL circuits.
