NTE950 - Positive 3 Terminal Voltage Regulator

NTE Electronics

The NTE950 by NTE Electronics is a Positive 3 Terminal Voltage Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	NTE950
Manufacturer	NTE Electronics
File Size	27.39 KB
Description	Positive 3 Terminal Voltage Regulator
Datasheet	NTE950_NTEElectronics.pdf

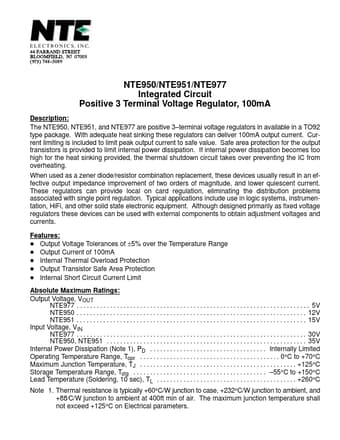

Additional preview pages of the NTE950 datasheet.

The NTE950, NTE951, and NTE977 are positive 3 terminal voltage regulators in available in a TO92 type package.

D Output Voltage Tolerances of ±5% over the Temperature Range D Output Current of 100mA D Internal Thermal Overload Protection D Output Transistor Safe Area Protection D Internal Short Circuit Current Limit Absolute Maximum Ratings: Output Voltage, VOUT NTE977.
5V NTE950.
