NTE953

The NTE953 is Linear Integrated Circuit 4-Terminal Positive Adjustable Voltage Regulator designed by NTE Electronics.

Product Overview

NTE Electronics

Datasheet Details

Part number	NTE953
Manufacturer	NTE Electronics
File Size	28.78 KB
Description	Linear Integrated Circuit 4-Terminal Positive Adjustable Voltage Regulator
Datasheet	NTE953_NTEElectronics.pdf

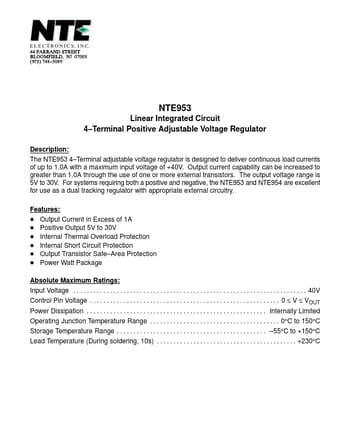

Additional preview pages of the NTE953 datasheet.

Product details

Description

The NTE953 4 Terminal adjustable voltage regulator is designed to deliver continuous load currents of up to 1.0A with a maximum input voltage of +40V.

Features

D Output Current in Excess of 1A D Positive Output 5V to 30V D Internal Thermal Overload Protection D Internal Short Circuit Protection D Output Transistor Safe.
Area Protection D Power Watt Package Absolute Maximum Ratings: Input Voltage.
40V Control Pin Voltage.
.
