NSi1311 - High Reliability Reinforced Isolated Amplifier

Name: NSi1311
SKU: NSi1311-1541969

NOVOSENSE

📥 Download Datasheet

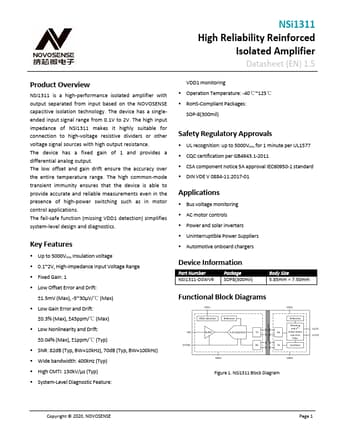

NSi1311 Datasheet Preview — Preview of NSi1311 PDF

Datasheet Details

Part number	NSi1311
Manufacturer	NOVOSENSE
File Size	2.82 MB
Description	High Reliability Reinforced Isolated Amplifier
Datasheet	NSi1311-NOVOSENSE.pdf

NSi1311 Product details

Description

8 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 8 6.2. INSULATION CHARACTERISTICS 8 6.3. REGULATORY INFORMATION 10 7. FUNCTION DESCRIPTION 10 7.1. OVERVIEW10 7.2. ANALOG INPUT 11 7.3. ANALOG OUTPUT 11 8. APPLICATION NOTE..

Features

Up to 5000Vrms Insulation voltage.
0.1~2V, High-Impedance Input Voltage Range.
Fixed Gain: 1.
Low Offset Error and Drift: ±1.5mV (Max), -5~30μV/℃ (Max).
Low Gain Error and Drift: ±0.3% (Max), ±45ppm/℃ (Max).
Low Nonlinearity and Drift: ±0.04% (Max), ±1ppm/℃ (Typ).
SNR: 82dB (Typ, BW=10kHz), 70dB (Typ, BW=100kHz).
Wide bandwidth: 400kHz (Typ).
High CMTI: 150kV/μs (Typ).
System-Level Diagnostic Feature: VDD1 monitoring.
Operation Temperature.
