NSi1300-Q1 - High Reliability Reinforced Isolated Amplifier

Name: NSi1300-Q1
SKU: NSi1300-Q1-1541963

NOVOSENSE

📥 Download Datasheet

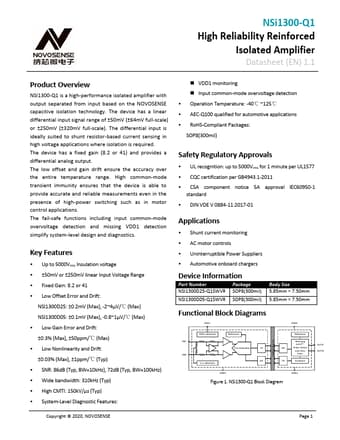

NSi1300-Q1 Datasheet Preview — Preview of NSi1300-Q1 PDF

Datasheet Details

Part number	NSi1300-Q1
Manufacturer	NOVOSENSE
File Size	1.42 MB
Description	High Reliability Reinforced Isolated Amplifier
Datasheet	NSi1300-Q1-NOVOSENSE.pdf

NSi1300-Q1 Product details

Description

12 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 12 6.2. DIN VDE V 0884-11 (VDE V 0884-11): 2017-01 INSULATION CHARACTERISTICS 12 6.3. REGULATORY INFORMATION 13 7. FUNCTION DESCRIPTION

Features

Up to 5000Vrms Insulation voltage.
±50mV or ±250mV linear Input Voltage Range.
Fixed Gain: 8.2 or 41.
Low Offset Error and Drift: NSI1300D25: ±0.2mV (Max), -2~4μV/℃ (Max) NSI1300D05: ±0.1mV (Max), -0.8~1μV/℃ (Max).
Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max).
Low Nonlinearity and Drift: ±0.03% (Max), ±1ppm/℃ (Typ).
SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz).
Wide bandwidth: 310kHz (Typ).
High CMTI: 150kV/μs (Typ).
System-Level Di.
