NSi1306 - Isolated Sigma-Delta Modulator

Name: NSi1306
SKU: NSi1306-1538940

NOVOSENSE

📥 Download Datasheet

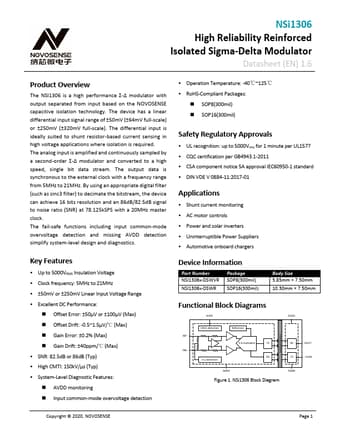

NSi1306 Datasheet Preview — Preview of NSi1306 PDF

Datasheet Details

Part number	NSi1306
Manufacturer	NOVOSENSE
File Size	1.50 MB
Description	Isolated Sigma-Delta Modulator
Datasheet	NSi1306-NOVOSENSE.pdf

NSi1306 Product details

Description

14 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 14 6.2. INSULATION CHARACTERISTICS 14 6.3. REGULATORY INFORMATION 15 7. FUNCTION DESCRIPTION 16 7.1. OVERVIEW 16 7.2. ANALOG INPUT

Features

Up to 5000VRMS Insulation Voltage.
Clock frequency: 5MHz to 21MHz.
±50mV or ±250mV Linear Input Voltage Range.
Excellent DC Performance:.
Offset Error: ±50μV or ±100μV (Max).
Offset Drift: -0.5~1.5μV/℃ (Max).
Gain Error: ±0.2% (Max).
Gain Drift: ±40ppm/℃ (Max).
SNR: 82.5dB or 86dB (Typ).
High CMTI: 150kV/μs (Typ).
System-Level Diagnostic Features:.
AVDD monitoring.
Input common-mode overvoltage detection.
Operation Temperatu.
