Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

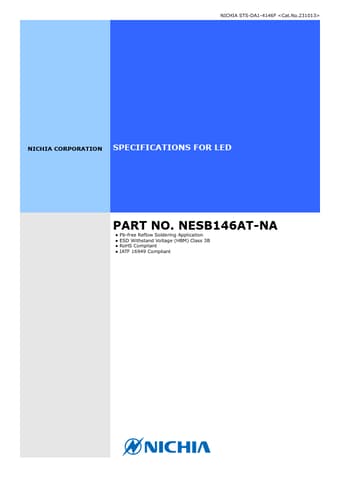

NICHIA STS-DA1-4146F NICHIA CORPORATION SPECIFICATIONS FOR LED PART NO. NESB146AT-NA ● Pb-free Reflow Soldering Application ● ESD Withstand Voltage (HBM) Class 3B ● RoHS Compliant ● IATF 16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4146F (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 30 Pulse Forward Current IFP 100 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR 85 Power Dissipation PD 105 Operating Temperature Topr -40~110 Storage Temperature Tstg -40~110 Junction Temperature TJ 125 * Absolute Maximum Ratings at TA=25°C. * IFP conditions with pulse width ≤10ms and duty cycle ≤10%.
