UPD46128953-X Datasheet - NEC

UPD46128953-X 128M-BIT CMOS MOBILE SPECIFIED RAM 4M-WORD BY 32-BIT ADDRESS / DATA MULTIPLEXED EXTENDED TEMPERATURE OPERATION

The μPD46128953-X is a high speed, low power, 134,217,728 bits (4,194,304 words by 32 bits) CMOS Mobile Specified RAM featuring synchronous burst read and synchronous burst write function. The μPD46128953-X realizes high performance with the SDR interface, command and data inputs / outputs are synch.

UPD46128953-X Features

* 4,194,304 words by 32 bits organization

* Low voltage operation: 1.7 to 2.0 V (1.85±0.15 V)

* Operating ambient temperature: TA =

* 25 to +85 °C

* Synchronous burst mode Burst length : 8 double words (Wrap) Burst sequence : Linear burst Maximum clock frequenc

UPD46128953-X Datasheet (551.06 KB)

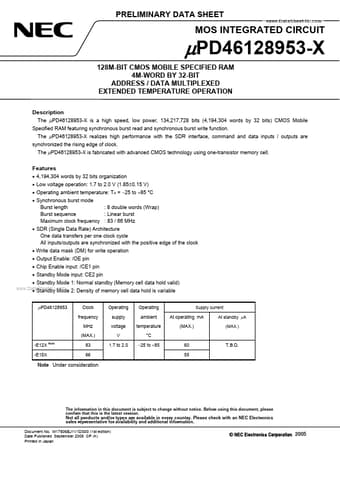

Preview of UPD46128953-X PDF
UPD46128953-X Datasheet Preview Page 2 UPD46128953-X Datasheet Preview Page 3

Datasheet Details

Part number:

UPD46128953-X

Manufacturer:

NEC

File Size:

551.06 KB

Description:

128m-bit cmos mobile specified ram 4m-word by 32-bit address / data multiplexed extended temperature operation.
