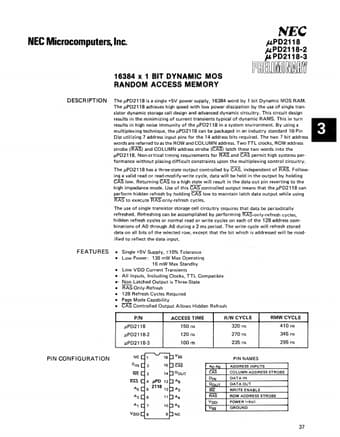

UPD2118 - 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY

NEC

📥 Download Datasheet

UPD2118 Datasheet Preview — Preview of UPD2118 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD2118
Manufacturer	NEC
File Size	520.52 KB
Description	16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY
Datasheet	UPD2118-NEC.pdf

UPD2118 Product details

Features

Single+5VSupply,±10%Tolerance.
Low Power: 138 mW Max Operating 16 mW Max Standby.
Low VDD Current Transients.
All Inputs, Including Clocks, TTL Compatible.
Non.
Latched Output is Three.
State.
RAS.
Only.
Refresh.
128 Refresh Cycles Required.
Page Mode Capability.
CAS Controlled Output Allows Hidden Refresh PIN IlPD2118 IlPD2118.
2 IlPD2118.
3 ACCESS TIME 150 ns 120 ns 100 r1'S RIW CYC.
