UPD2118-3 - 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY

Download the UPD2118-3 datasheet PDF (UPD2118 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 16384 x 1 bit dynamic mos random access memory.

Features

  • Single+5VSupply,±10%Tolerance.
  • Low Power: 138 mW Max Operating 16 mW Max Standby.
  • Low VDD Current Transients.
  • All Inputs, Including Clocks, TTL Compatible.
  • Non.
  • Latched Output is Three.
  • State.
  • RAS.
  • Only.
  • Refresh.
  • 128 Refresh Cycles Required.
  • Page Mode Capability.
  • CAS Controlled Output Allows Hidden Refresh PIN IlPD2118 IlPD2118.
  • 2 IlPD2118.
  • 3 ACCESS TIME 150 ns 120 ns 100 r1'S RIW CYC.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UPD2118-NEC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UPD2118-3
Manufacturer NEC
File Size 520.52 KB
Description 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY
Datasheet download datasheet UPD2118-3 Datasheet

📁 Similar Datasheet

  • UPD2101AL - 1K-Bit Static MOS RAM (NEC Electronics)
  • UPD2102AL - 1K-Bit Fully Decoded Static MOS RAM (NEC Electronics)
  • UPD2010AL - 1K-Bit Static MOS RAM (NEC Electronics)
  • UPD2364 - ROM 8192 words / 8-Bit (NEC Electronics)
  • UPD2364A - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD2364E - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD23C1000A - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1000EA - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1001E - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1010A - Mask Programmable CMOS ROM (NEC Electronics)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

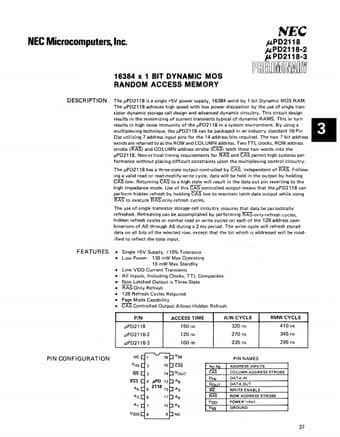

NEe Microcomputers, Inc. 16384 x 1 BIT DYNAMIC MOS RANDOM ACCESS MEMORY NEe ,uPD2118 ,uPD2118-2 JI. PD2118-3 [~OO~[~~~~ffirnW DESCR IPTION ThepPD2118 is a single +5V power supply, 16384 word by 1 bit Dynamic MOS RAM. The IlPD2118 achieves high speed with low power dissipation by the use of single tran· sistor dynamic storage cell design and advanced dynamic circuitry. This circuit design results in the minimizing of current transients typical of dynamic RAMS. This in turn II results in high noise immunity of the IlPD2118 in a system environment. By using a multiplexing technique, the IlPD2118 can be packaged in an industry standard 16·Pin Dip utilizing 7 address input pins for the 14 address bits required. The two 7 bit address words are referred to as the ROWand COLUMN address.
