UPD160061A - 384-OUTPUT TFT-LCD SOURCE DRIVER

Name: UPD160061A
SKU: UPD160061A-672306

NEC

📥 Download Datasheet

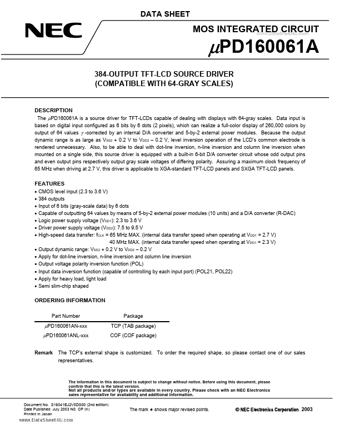

UPD160061A Datasheet Preview — Preview of UPD160061A PDF

Datasheet Details

Part number	UPD160061A
Manufacturer	NEC
File Size	613.47 KB
Description	384-OUTPUT TFT-LCD SOURCE DRIVER
Datasheet	UPD160061A_NEC.pdf

UPD160061A Product details

Description

The µPD160061A is a source driver for TFT-LCDs capable of dealing with displays with 64-gray scales. 0.2 V, level inversion operation of the LCD’s common electrode is rendered unnecess

Features

CMOS level input (2.3 to 3.6 V) 384 outputs Input of 6 bits (gray-scale data) by 6 dots Capable of outputting 64 values by means of 5-by-2 external power modules (10 units) and a D/A converter (R-DAC) Logic power supply voltage (VDD1): 2.3 to 3.6 V Driver power supply voltage (VDD2): 7.5 to 9.5 V High-speed data transfer: fCLK = 65 MHz MAX. (internal data transfer spe.
