UPB409-2, UPB429 - 2K x 8-BIT BIPOLA TTL PROM

NEC

The UPB409-2 by NEC is a 2K x 8-BIT BIPOLA TTL PROM. Below is the official datasheet preview.

📥 Download Datasheet

UPB409-2 2K x 8-BIT BIPOLA TTL PROM by NEC - Datasheet Preview — Official preview page of the UPB409-2 2K x 8-BIT BIPOLA TTL PROM datasheet (NEC).

Datasheet Details

Part number	UPB409-2, UPB429
Manufacturer	NEC
File Size	230.73 KB
Description	2K x 8-BIT BIPOLA TTL PROM
Datasheet	UPB429_NEC.pdf
Note	This datasheet PDF includes multiple part numbers: UPB409-2, UPB429. Please refer to the document for exact specifications by model.
Additional preview pages of the UPB409-2 datasheet.

UPB409-2 Product details

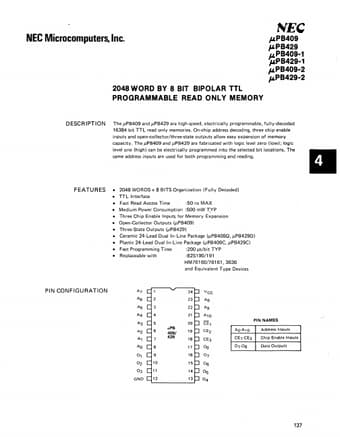

Features

2048 WORDS x 8 BITS Organization (Fully Decoded).
TT L Interface.
Fast Read Access Time :50 ns MAX.
Medium Power Consumption :500 mW TyP.
Three Chip Enable Inputs for Memory Expansion.
Open-Collector Outputs (JlPB409).
Three-State Outputs (JlPB429).
Ceramic 24-Lead Dual In-Line Package (JlPB409D, JlPB429D).
Plastic.
