UPB406 - 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY

NEC

The UPB406 by NEC is a 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

UPB406 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY by NEC - Datasheet Preview — Official preview page of the **UPB406** 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY datasheet (NEC).

Datasheet Details

Part number	UPB406
Manufacturer	NEC
File Size	208.65 KB
Description	4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY
Datasheet	UPB406-NEC.pdf

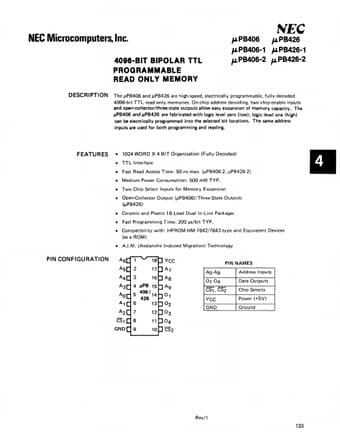

Additional preview pages of the UPB406 datasheet.

UPB406 Product details

Description

The IlPB406 and IlPB426 are high-speed, electrically programmable, fully-decoded 4096-bit TTL read-only memories. enable inputs and open-collector/three-state outputs allow easy expansion of memory capacity.

Features

1024 WORD X 4 BIT Organization (Fully Decoded).
TTL Interface.
Fast Read Access Time: 50 ns max. (IlPB406-2, IlPB426.
2).
Medium Power Consumption: 500 mW TYP.
Two Chip Select Inputs for Memory Expansion.
Open-Collector Output (IlPB406)/Three-State Outputs (Il PB426).
Ceramic and Plastic lS-Lead Dual In-Line Packages.
Fast Programming Time: 2.
