UPB406-1 - 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY

Download the UPB406-1 datasheet PDF. This datasheet also covers the UPB406 variant, as both devices belong to the same 4k-bit bipolar ttl programmable read only memory family and are provided as variant models within a single manufacturer datasheet.

Description

The IlPB406 and IlPB426 are high-speed, electrically programmable, fully-decoded 4096-bit TTL read-only memories.

enable inputs and open-collector/three-state outputs allow easy expansion of memory capacity.

Features

  • 1024 WORD X 4 BIT Organization (Fully Decoded).
  • TTL Interface.
  • Fast Read Access Time: 50 ns max. (IlPB406-2, IlPB426.
  • 2).
  • Medium Power Consumption: 500 mW TYP.
  • Two Chip Select Inputs for Memory Expansion.
  • Open-Collector Output (IlPB406)/Three-State Outputs (Il PB426).
  • Ceramic and Plastic lS-Lead Dual In-Line Packages.
  • Fast Programming Time: 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UPB406-NEC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UPB406-1
Manufacturer NEC
File Size 208.65 KB
Description 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY
Datasheet download datasheet UPB406-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UPB451616T SMD Multilayer Ferrite Chip Beads Chilisin Electronics
UPB453215T SMD Multilayer Ferrite Chip Beads Chilisin Electronics
UPB100505T SMD Multilayer Ferrite Chip Beads Chilisin Electronics
UPB1007K PLL FREQUENCY SYNTHESIZER ETC
UPB1008K LOW POWER GPS RF RECEIVER CEL

Other Datasheets by NEC

Part Number Description
UPB406-2 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY
UPB406 4K-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY
UPB406C 4K-Bit Bipolar TTL Programmable ROM
UPB406D 4K-Bit Bipolar TTL Programmable ROM
UPB409 2K x 8-BIT BIPOLA TTL PROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

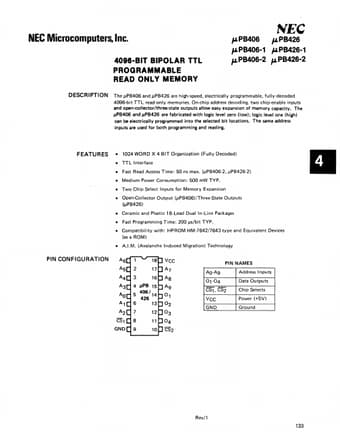

NEe Microcomputers, Inc. 4098-BIT BIPOLAR TTL PROGRAMMABLE READ ONLY MEMORY NEe JLPB406 JLPB426 JLPB406-1 JLPB426-1 JL PB406-2 JL PB426-2 DESCRIPTION The IlPB406 and IlPB426 are high-speed, electrically programmable, fully-decoded 4096-bit TTL read-only memories. On-chip address decoding, two chip·enable inputs and open-collector/three-state outputs allow easy expansion of memory capacity. The IlPB406 and IlPB426 are fabricated with logic level zero (low); logic level one (high) can be electrically programmed into the selected bit locations. The same address inputs are used for both programming and reading. FEATURES • 1024 WORD X 4 BIT Organization (Fully Decoded) • TTL Interface • Fast Read Access Time: 50 ns max. (IlPB406-2, IlPB426·2) • Medium Power Consumption: 500 mW TYP.
