NEZ1414-8E - 8W X / Ku-BAND POWER GaAs MESFET

General Description

The NEZ1011-8E and NEZ1414-8E are power GaAs MESFETs which provide high gain, high efficiency and high output in X, Ku-band.

The internal input and output matching enables guaranteed performance to be achieved with only a 50 Ω external circuit.

Key Features

  • High Output Power : Po (1 dB) = +39.5 dBm typ.
  • High Linear Gain.
  • High Efficiency : 6.5 dB typ. : 25 % typ.
  • Input and Output Internally Matched for Optimum performance.

📥 Download Datasheet

Datasheet Details

Part number NEZ1414-8E
Manufacturer NEC
File Size 82.69 KB
Description 8W X / Ku-BAND POWER GaAs MESFET
Datasheet download datasheet NEZ1414-8E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NEZ1414-2A Microwave GaAs Power FET NEC Electronics
NEZ1414-4A (NEZ1414-2A-4A-6A) Microwave GaAs Power FET NEC Electronics
NEZ1414-6A (NEZ1414-2A-4A-6A) Microwave GaAs Power FET NEC Electronics
NEZB104Z5.5V13.5X7.5F Memory Back-Up Capacitors NIC
NEZB105Z5.5V21.5X8F Memory Back-Up Capacitors NIC

Other Datasheets by NEC

Part Number Description
NEZ1414-2E 2W X / Ku-BAND POWER GaAs MESFET
NEZ1011-2E 2W X / Ku-BAND POWER GaAs MESFET
NEZ1011-8E 8W X / Ku-BAND POWER GaAs MESFET
NEZ3642-15D 15 W C-BAND POWER GaAs FET N-CHANNEL GaAs MES FET
NEZ3642-15DD 15 W C-BAND POWER GaAs FET N-CHANNEL GaAs MES FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

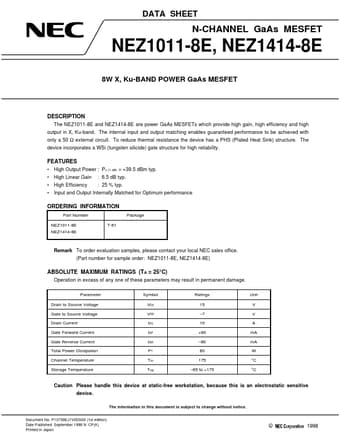

DATA SHEET N-CHANNEL GaAs MESFET NEZ1011-8E, NEZ1414-8E 8W X, Ku-BAND POWER GaAs MESFET DESCRIPTION The NEZ1011-8E and NEZ1414-8E are power GaAs MESFETs which provide high gain, high efficiency and high output in X, Ku-band. The internal input and output matching enables guaranteed performance to be achieved with only a 50 Ω external circuit. To reduce thermal resistance the device has a PHS (Plated Heat Sink) structure. The device incorporates a WSi (tungsten silicide) gate structure for high reliability. FEATURES • High Output Power : Po (1 dB) = +39.5 dBm typ. • High Linear Gain • High Efficiency : 6.5 dB typ. : 25 % typ.
