LD7714 - HIGH POWER TRAVELING WAVE TUBE

Name: LD7714
SKU: LD7714-393111

NEC

📥 Download Datasheet

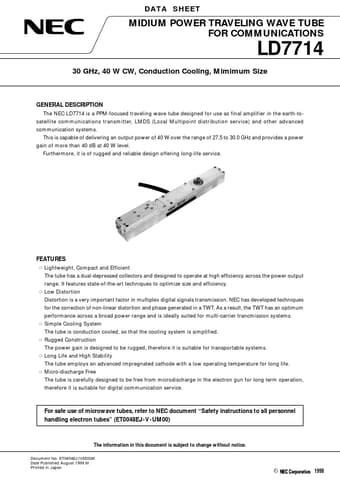

LD7714 Datasheet Preview — Preview of LD7714 PDF

Datasheet Details

Part number	LD7714
Manufacturer	NEC
File Size	53.73 KB
Description	HIGH POWER TRAVELING WAVE TUBE
Datasheet	LD7714_NEC.pdf

LD7714 Product details

Description

The NEC LD7714 is a PPM-focused traveling wave tube designed for use as final amplifier in the earth-tosatellite communications transmitter, LMDS (Local Multipoint distribution service) and other advanced communication systems.

Features

™ Lightweight, Compact and Efficient The tube has a dual-depressed collectors and designed to operate at high efficiency across the power output range. It features state-of-the-art techniques to optimize size and efficiency. ™ Low Distortion Distortion is a very important factor in multiplex digital signals transmission. NEC has developed techniques for the correction of non-linear distortion and phase generated in a TWT. As a result, the TWT has an optimum performance across a broad power range.
