LD7750B - High Voltage Green-Mode PWM Controller

Name: LD7750B
SKU: LD7750B-1282453

Leadtrend Technology

📥 Download Datasheet

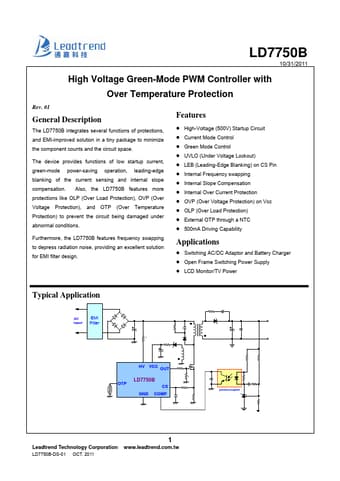

LD7750B Datasheet Preview — Preview of LD7750B PDF

Datasheet Details

Part number	LD7750B
Manufacturer	Leadtrend Technology
File Size	437.93 KB
Description	High Voltage Green-Mode PWM Controller
Datasheet	LD7750B-LeadtrendTechnology.pdf

LD7750B Product details

Description

The LD7750B integrates several functions of protections, and EMI-improved solution in a tiny package to minimize the component counts and the circuit space.

Features

more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under abnormal conditions. Furthermore, the LD7750B features frequency swapping to depress radiation noise, providing an excellent solution for EMI filter design. Features z High-Voltage (500V) Startup Circuit z Current Mode Control z Green Mode Control z UVLO (Under Voltage Lockout) z LEB (Leading-Edge Blanking) on CS Pin z Internal Frequen.
