LD7750RGS, LD7750R - High Voltage Green-Mode PWM Controller

Leadtrend

The LD7750RGS by Leadtrend is a High Voltage Green-Mode PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

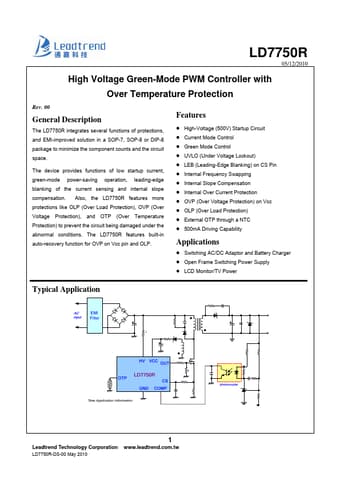

LD7750RGS High Voltage Green-Mode PWM Controller by Leadtrend - Datasheet Preview — Official preview page of the **LD7750RGS** High Voltage Green-Mode PWM Controller datasheet (Leadtrend).

Datasheet Details

Part number	LD7750RGS, LD7750R
Manufacturer	Leadtrend
File Size	401.90 KB
Description	High Voltage Green-Mode PWM Controller
Datasheet	LD7750R-Leadtrend.pdf
Note	This datasheet PDF includes multiple part numbers: LD7750RGS, LD7750R. Please refer to the document for exact specifications by model.
Additional preview pages of the LD7750RGS datasheet.

LD7750RGS Product details

Description

The LD7750R integrates several functions of protections, and EMI-improved solution in a SOP-7, SOP-8 or DIP-8 package to minimize the component counts and the circuit space.

Features

more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under the abnormal conditions. The LD7750R features built-in auto-recovery function for OVP on Vcc pin and OLP. Features z High-Voltage (500V) Startup Circuit z Current Mode Control z Green Mode Control z UVLO (Under Voltage Lockout) z LEB (Leading-Edge Blanking) on CS Pin z Internal Frequency Swapping z Internal Slope Compensation z Interna.
