LD7213 - HIGH POWER TRAVELING WAVE TUBE

Name: LD7213
SKU: LD7213-393088

NEC

📥 Download Datasheet

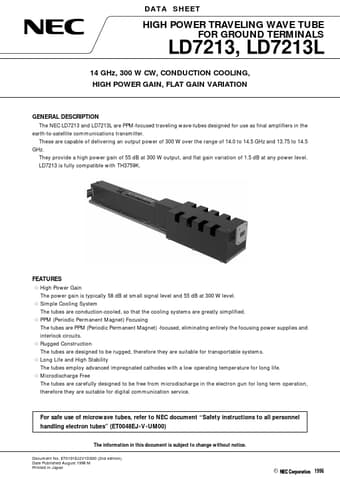

LD7213 Datasheet Preview — Preview of LD7213 PDF

Datasheet Details

Part number	LD7213
Manufacturer	NEC
File Size	46.11 KB
Description	HIGH POWER TRAVELING WAVE TUBE
Datasheet	LD7213_NEC.pdf

LD7213 Product details

Description

The NEC LD7213 and LD7213L are PPM-focused traveling wave-tubes designed for use as final amplifiers in the earth-to-satellite communications transmitter.

Features

™ High Power Gain The power gain is typically 58 dB at small signal level and 55 dB at 300 W level. ™ Simple Cooling System The tubes are conduction-cooled, so that the cooling systems are greatly simplified. ™ PPM (Periodic Permanent Magnet) Focusing The tubes are PPM (Periodic Permanent Magnet) -focused, eliminating entirely the focusing power supplies and interlock circuits. ™ Rugged Construction The tubes are designed to be rugged, therefore they are suitable for transportable systems. ™ Lon.
