LD7215 - HIGH POWER TRAVELING WAVE TUBE

Name: LD7215
SKU: LD7215-393090

NEC

📥 Download Datasheet

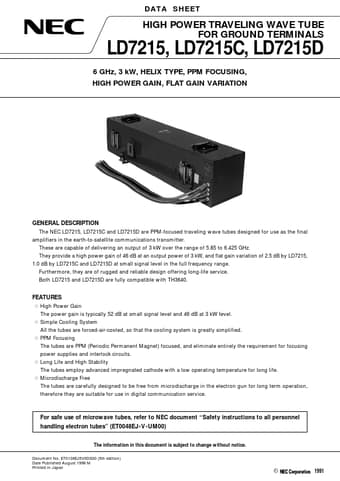

LD7215 Datasheet Preview — Preview of LD7215 PDF

Datasheet Details

Part number	LD7215
Manufacturer	NEC
File Size	92.50 KB
Description	HIGH POWER TRAVELING WAVE TUBE
Datasheet	LD7215_NEC.pdf

LD7215 Product details

Description

The NEC LD7215, LD7215C and LD7215D are PPM-focused traveling wave tubes designed for use as the final amplifiers in the earth-to-satellite communications transmitter.

Features

™ High Power Gain The power gain is typically 52 dB at small signal level and 46 dB at 3 kW Ievel. ™ Simple Cooling System All the tubes are forced-air-cooled, so that the cooling system is greatly simplified. ™ PPM Focusing The tubes are PPM (Periodic Permanent Magnet) focused, and eliminate entirely the requirement for focusing power supplies and interlock circuits. ™ Long Life and High Stability The tubes employ advanced impregnated cathode with a low operating temperature for long life. ™ Mi.
