LD7213L - HIGH POWER TRAVELING WAVE TUBE

Name: LD7213L
SKU: LD7213L-393089

NEC

📥 Download Datasheet

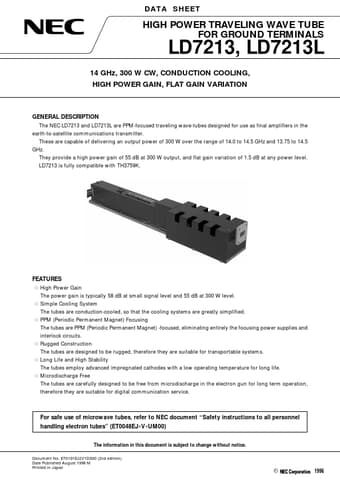

LD7213L Datasheet Preview — Preview of LD7213L PDF

Datasheet Details

Part number	LD7213L
Manufacturer	NEC
File Size	46.11 KB
Description	HIGH POWER TRAVELING WAVE TUBE
Datasheet	LD7213L_NEC.pdf

LD7213L Product details

Description

The NEC LD7213 and LD7213L are PPM-focused traveling wave-tubes designed for use as final amplifiers in the earth-to-satellite communications transmitter.

Features

™ High Power Gain The power gain is typically 58 dB at small signal level and 55 dB at 300 W level. ™ Simple Cooling System The tubes are conduction-cooled, so that the cooling systems are greatly simplified. ™ PPM (Periodic Permanent Magnet) Focusing The tubes are PPM (Periodic Permanent Magnet) -focused, eliminating entirely the focusing power supplies and interlock circuits. ™ Rugged Construction The tubes are designed to be rugged, therefore they are suitable for transportable systems. ™ Lon.
