NCE85H21T N-Channel Enhancement Mode Power MOSFET

NCE85H21T Description

http://www.ncepower.com Pb Free Product NCE85H21T NCE N-Channel Enhancement Mode Power MOSFET .
The NCE85H21T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

NCE85H21T Features

* VDSS =85V,ID =210A RDS(ON) < 4.5mΩ @ VGS=10V Schematic diagram
* Good stability and uniformity with high EAS
* Special process technology for high ESD capability
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Excellent

📥 Download Datasheet

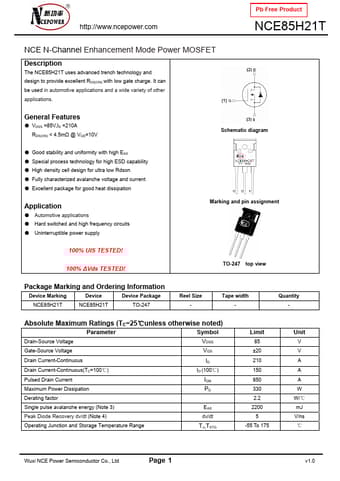

Preview of NCE85H21T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCE85H21T
Manufacturer
NCE Power
File Size
356.12 KB
Datasheet
NCE85H21T-NCEPower.pdf
Description
N-Channel Enhancement Mode Power MOSFET
