NCE85H21 N-Channel Enhancement Mode Power MOSFET

NCE85H21 Description

http://www.ncepower.com Pb Free Product NCE85H21 NCE N-Channel Enhancement Mode Power MOSFET .
The NCE85H21 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

NCE85H21 Features

* VDSS =85V,ID =210A（Note5） RDS(ON) < 3.8mΩ @ VGS=10V
* Good stability and uniformity with high EAS
* Special process technology for high ESD capability
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Excellent package for

📥 Download Datasheet

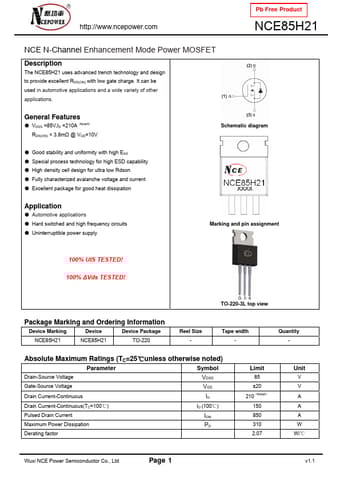

Preview of NCE85H21 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCE85H21
Manufacturer
NCE Power
File Size
308.96 KB
Datasheet
NCE85H21-NCEPower.pdf
Description
N-Channel Enhancement Mode Power MOSFET
