TMR6501, Single Channel TMR Magnetic Pattern Recognition Sensor

Datasheet REVISED 08/2018 TMR6501 Single Channel TMR Magnetic Pattern Recognition Sensor General .
The TMR6501 is a type of single channel magnetic pattern recognition sensor with high sensitivity, high signal-to-noise ratio performance, it is used.

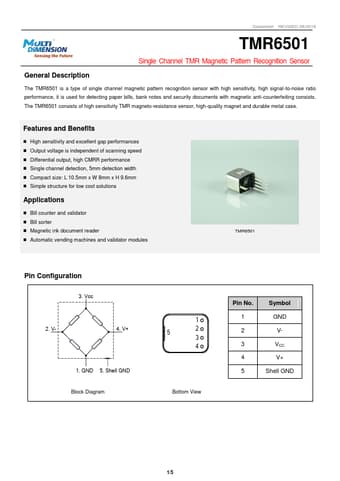

datasheet Preview Page 1 from Datasheet4u.com

TMR6501-MultiDimension.pdf

TMR6501 Datasheet Preview — Preview of TMR6501 PDF

Datasheet Details

Part number:

TMR6501

Manufacturer:

MultiDimension

File Size:

408.20 KB

Description:

Single Channel TMR Magnetic Pattern Recognition Sensor

Features

* High sensitivity and excellent gap performances
* Output voltage is independent of scanning speed
* Differential output, high CMRR performance
* Single channel detection, 5mm detection width
* Compact size: L 10.5mm x W 8mm x H 9.6mm
* Simple structure for low cost solution

Applications

* Bill counter and validator
* Bill sorter
* Magnetic ink document reader
* Automatic vending machines and validator modules TMR6501 Pin Configuration 3. Vcc 2. V- 4. V+ 1. GND 5. Shell GND Block Diagram 1 2 5 3 4 Bottom View Pin No. 1 2 3 4 5 Symbol GND VVCC V+ Shell GND 1/
